Sega Master System Model 2 Passive RGB Video Mod Kit

(4 customer reviews)

£10.00

Mod Kit Includes:

  • 1 x Passive RGB Board with full Audio & Video lines
  • 1 x AV Output Mount
  • 1 x AV Output Brace
  • 1 x High Quality Gold-Plated 9-Pin Mini DIN (Not from Aliexpres/eBay)
  • 4 x Turret Posts

Features:

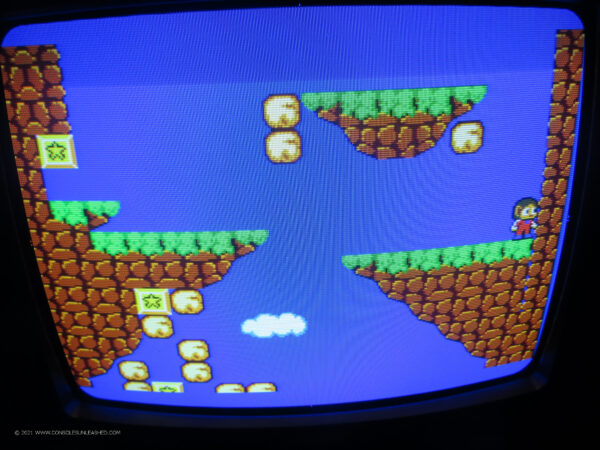

  • Adds native RGB video to the Master System 2 console
  • Uses the RGB encoder of the console
  • Robust, secure and easy to install AV output connector mount

7 in stock

SKU: KIT-SMS2-PRGB Categories: , ,

Description

Sega Master System Model 2 Passive RGB Video Mod Kit

Passive RGB audio/video output mod kit for Sega Master System model 2. Comes with an easy to install mount and high quality 9-pin mini DIN. Perfect for those who just want to use the console’s native video output.

This mod simply adds back the components Sega removed from the Master System when designing the model 2. The output connector is a 9-pin mini DIN to be compatible with standard Mega Drive 2 SCART cables.

The design for the mount and brace assembly is an original design using a turret with a circular disc that fits into the brace and solders to both the mount and brace. It vastly improves upon older, similar designs. The PCBs have been purposely designed without ground planes to allow them to be held whilst soldering the turrets. The turret holes are not through plated which means that the whole assembly can be easily removed by simply de-soldering the protruding pins from the bottom of the Master System mainboard.

Product Instructions

Install Guide

Sega Master System Model 2 RGB Video Mod Install Guide

Tech Info

Sega Master System 2

Additional information

Weight 0.013 g
Product Type

Mod Kit

Console Make

SEGA

Console Model

Master System

Mod Attribute

AV Connector, RGB Video

Designed by

Consoles Unleashed

Coded by

Not Applicable

Product Credits

Design & Build

  • Hand made by Consoles Unleashed
  • PCB design & concept by Consoles Unleashed
  • Hardware research by Consoles Unleashed

4 reviews for Sega Master System Model 2 Passive RGB Video Mod Kit

  1. Mike Isom

    Nice kit, replace RF only with RGB or composite. Use Genesis 2 cables. Use Hyperkin G2 to HDMI. Use Sega 1632 if you still want RF.

    Audio left and right is bridged but I also had to connect pin 6 mono audio for OEM mono A/V cable and RF adapter. Flipped caps and resistor to opposite side to clear channel select hole for switch from FM mod.

  2. Isaac McAninch

    Finally found a good, well-documented kit to give my SMS2 RGB video. Works great, does exactly what I expected, install wasn’t too difficult.

  3. James

    Install was easy enough once the RF modulator was removed, and the whole process was helped with the clear documentation with plenty of pics. End result being I can see what game I’m playing again and the mod is fully reversible if it ever came to it.

  4. Andrew Davidson

    Nice kit, install pretty straight forward with good clear documentation. Works great, really pleased with it.
