Sega Mega Drive Switchless Region Mod Kit

£11.00

Mod Kit Includes:

  • 1 x Mega Drive Switchles Region Mod-board
  • 1 x Mega Drive LED board
  • 1 x Kingbright ‘Red (Yellow) Green’ LED
  • Pre-wired JST connector

Features:

  • Makes the console multi region (region free)
  • Change region using the reset button
  • 50/60Hz video rate selection for full speed, full screen gaming
  • English / Japanese language selection (dependent on game)
  • DFO support
  • Works with both active high and active low reset

2 in stock

SKU: KIT-SMD-R Categories: , ,

Description

Sega Mega Drive Switchless Region Mod Kit

The best value Mega Drive switchless region mod kit in the world. Designed, hand made, and sold exclusively by me. Feature rich and designed to be a pleasure to install. Includes switchless multi region, a unique detachable LED board that prevents the LED install from looking like a hot glue mess, and DFO compatibility. Hand made using the highest quality Panasonic resistors, Vishay capacitors, and genuine Microchip ICs.

Switchless Region Mod

The Mega Drive Switchless Region Mod lets you set the region of the console to Europe, North America or Japan, essentially between PAL and NTSC regions. This is done by changing the Video Refresh Rate to 50Hz or 60Hz and the Language to English or Japanese.

When the mod is correctly installed, the console will run games in their correct aspect ratio and speed and bypass any region protection of imported games.

The reset button is used to cycle through the regions.

  • Setting 1 = Green LED – Europe/PAL – 50Hz/English
  • Setting 2 = Red LED – North America/NTSC – 60Hz/English
  • Setting 3 = Yellow LED – Japan/NTSC – 60Hz/Japanese

If you are running your PAL systems in 50Hz, you are really doing the games a great disservice. I consider these switchless mods necessary for PAL consoles.

*Note that this mod will require using the console’s native RGB output via an RGB Scart cable. 60Hz regions will be black and white via composite output. RGB is recommended over all other video outputs because of its superior video quality.

Product Instructions

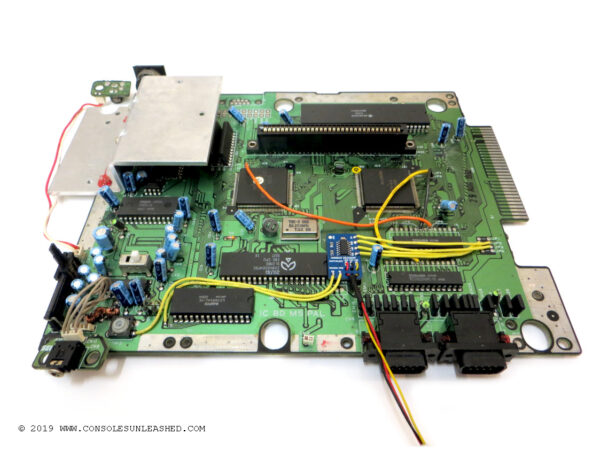

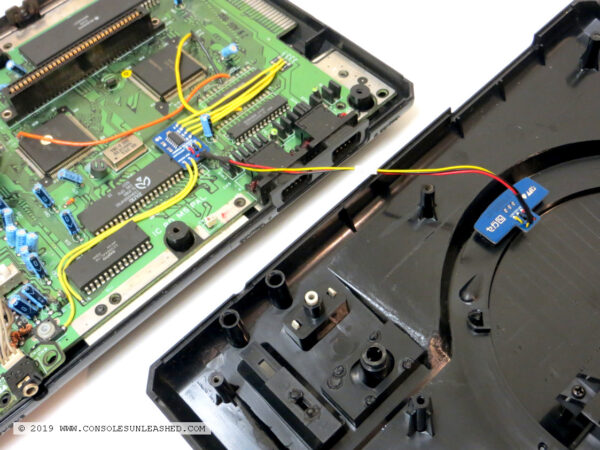

Install Guide

Operation

Controller Button Combination

  • Hold together A + B + C + START

To Reset

  • Quick press of the console reset button should reset the console as normal.
  • Hold the controller button combination down until the LED briefly turns off. This indicated 1.5 seconds. Letting go of the button combination at this point will reset the console.

To Change Region

  • Holding the console reset button down will cycle through the regions. Let go of the reset button at the desired region.
  • Hold the controller button combination down will cycle through the regions after 1.5 seconds. Let go of the button combination at the desired region.

Regions & LED Colours

  • Setting 1 = Green LED – Europe/PAL – 50Hz/English
  • Setting 2 = Red LED – North America/NTSC – 60Hz/English
  • Setting 3 = Yellow LED – Japan/NTSC – 60Hz/Japanese



Additional information

Weight 0.007 g
Product Type

Mod Kit
Console Make

SEGA
Console Model

Mega Drive
Mod Attribute

50/60Hz, DFO Support, Language, LED Mount, Multi-Region, Switchless Region
Designed by

Consoles Unleashed
Coded by

Borti4938
